Sensor Reflectivo Analogico QTR-8A

$280.00 MXN (IVA Incluido)

1 disponibles

Código De Producto: 960

Este módulo sensor tiene 8 pares de IR LED/fototransistores montados en un paso de 0,375″, por lo que es un gran detector para un robot. Los pares de LEDs están dispuestos en serie para reducir a la mitad el consumo de corriente y un MOSFET permite que los LEDs se enciendan fuera de las opciones de detección o el poder de ahorro adicionales. Cada sensor proporciona una salida de tensión analógica separadas.

Localización:C3

Información adicional

Peso 0.05 kg
Fabricante

Pololu

Descuento

5 o más $266.00
10 o más $252.00

SKU 960 Categorías , Etiqueta

1 disponibles

Descripción:

The QTR-8A reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for eight IR emitter and receiver (phototransistor) pairs evenly spaced at intervals of 0.375″ (9.525 mm). Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.

The outputs are all independent, but the LEDs are arranged in pairs to halve current consumption. The LEDs are controlled by a MOSFET with a gate normally pulled high, allowing the LEDs to be turned off by setting the MOSFET gate to a low voltage. Turning the LEDs off might be advantageous for limiting power consumption when the sensors are not in use or for varying the effective brightness of the LEDs through PWM control.

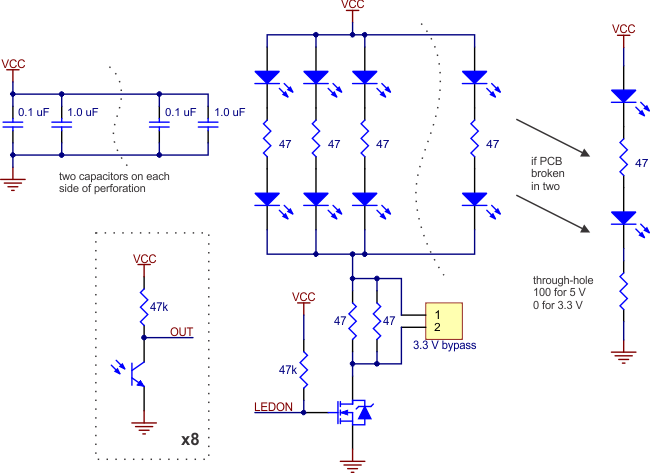

The LED current-limiting resistors for 5 V operation are arranged in two stages; this allows a simple bypass of one stage to enable operation at 3.3 V. The LED current is approximately 20-25 mA, making the total board consumption just under 100 mA. The schematic diagram of the module is shown below:

For a similar array with three sensors, consider our QTR-3A reflectance sensor array. The sensors on the QTR-8A are also available individually as the QTR-1A reflectance sensor, and the QTR-L-1A is an alternative designed to be used with the board perpendicular to the surface.

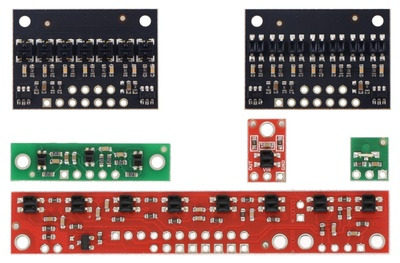

QTR sensor size comparison. Clockwise from top left: QTR-3RC, QTR-1RC, QTR-L-1RC, QTR-8RC.

Specifications

  • Dimensions: 2.95″ x 0.5″ x 0.125″ (without header pins installed)
  • Operating voltage: 3.3-5.0 V
  • Supply current: 100 mA
  • Output format: 8 analog voltages
  • Output voltage range: 0 V to supplied voltage
  • Optimal sensing distance: 0.125″ (3 mm)
  • Maximum recommended sensing distance: 0.25″ (6 mm)
  • Weight without header pins: 0.11 oz (3.09 g)

Interfacing with the QTR-8A Outputs

There are several ways you can interface with the QTR-8A outputs:

  • Use a microcontroller’s analog-to-digital converter (ADC) to measure the voltages.
  • Use a comparator with an adjustable threshold to convert each analog voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.
  • Connect each output directly to a digital I/O line of a microcontroller and rely upon its internal comparator.

This last method will work if you are able to get high reflectance from your white surface as depicted in the left image, but will probably fail if you have a lower-reflectance signal profile like the one on the right.

QTR-1A output 1/8″ away from a spinning white disk with a black line on it.
QTR-1A output 3/8″ away from a spinning white disk with a black line on it.

Our Pololu AVR library provides functions that make it easy to use these sensors with our Orangutan robot controllers; please see the QTR Reflectance Sensors section of our library command reference for more information. We also have aArduino library for these sensors.

Breaking the Module in Two

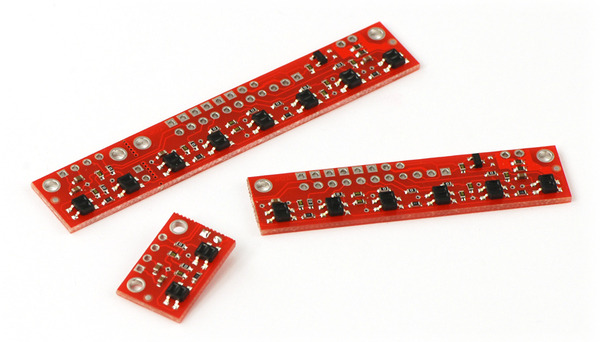

If you don’t need or cannot fit all eight sensors, you can break off two sensors and still use all 8 sensors as two separate modules, as shown below. The PCB can be scored from both sides along the perforation and then bent until it snaps apart. Each of the two resulting pieces will function as an independent line sensor.



Included Components

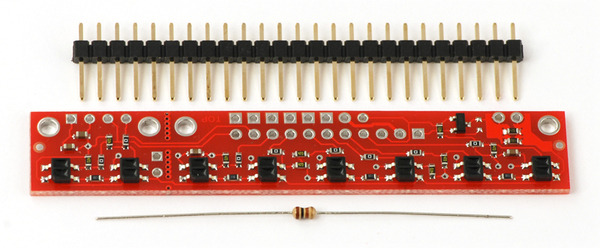

This module ships with a 25-pin 0.1″ header strip and a 100 Ohm through-hole resistor as shown below.

You can break the header strip into smaller pieces and solder them onto your reflectance sensor array as desired, or you can solder wires directly to the unit or use a right-angle header strip for a more compact installation. The pins on the module are arranged so that they can all be accessed using either an 11×1 strip or an 8×2 strip.

The resistor is required to make the two-sensor array functional after the original eight-sensor array is broken into two pieces. This resistor is only needed once the board has been broken.

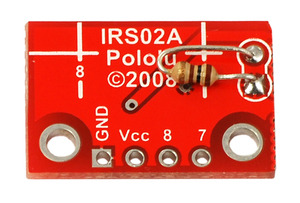

Solder the included resistor to the 2-sensor array piece as shown to make the separated piece functional.
